CAN ALSO BE CONFIGURED IN CURRENT MODE; PWM CONTROL TECHNIQUE ALSO POSSIBLE
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT/VOLTAGE-MODE
Control Technique:
RESONANT CONTROL
Input Voltage-Max:
20 V
Input Voltage-Min:
11 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e4
Length:
17.9 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.08 V
Output Voltage-Min:
4.92 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP28,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Current-Max (Isup):
30 mA
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
UC3875DWP Frequently Asked Questions (FAQs)
The UC3875DWP is a high-frequency device, and proper layout and placement are crucial for optimal performance. TI recommends a 4-layer PCB with a solid ground plane, and placing the IC close to the input capacitors and output inductors. Additionally, keep the high-current paths short and wide, and avoid routing sensitive signals near the switching node.
The UC3875DWP requires a compensation network to stabilize the voltage regulator. To optimize the compensation network, start with the recommended values in the datasheet, and then adjust the resistors and capacitors based on the specific application requirements. Use a network analyzer or a simulation tool to fine-tune the compensation network for optimal stability and transient response.
The UC3875DWP has an absolute maximum input voltage rating of 30V. However, the recommended maximum input voltage is 24V to ensure reliable operation and to prevent damage to the internal components. Exceeding the recommended input voltage may reduce the device's lifespan or cause permanent damage.
To ensure the UC3875DWP operates within the safe operating area (SOA), monitor the input voltage, output current, and junction temperature. Keep the input voltage below the recommended maximum, and ensure the output current is within the specified range. Also, ensure the device is properly heatsinked, and the junction temperature is below the maximum rating of 150°C.
The EN (enable) pin on the UC3875DWP is used to enable or disable the voltage regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3875DWP Overview

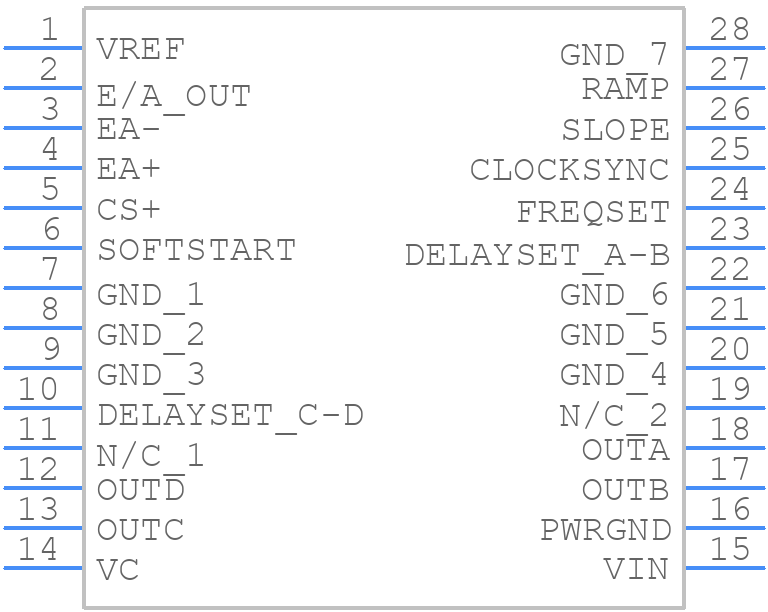

Use the download button to access the UC3875DWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC387,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
