CAN ALSO BE CONFIGURED IN CURRENT MODE; PWM CONTROL TECHNIQUE ALSO POSSIBLE
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT/VOLTAGE-MODE
Control Technique:
RESONANT CONTROL
Input Voltage-Max:
20 V
Input Voltage-Min:
11 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDIP-T20
JESD-609 Code:
e4
Length:
25.4 mm
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.08 V
Output Voltage-Min:
4.92 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP20,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Current-Max (Isup):
30 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
15.25 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
NO
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm
UC3876N Frequently Asked Questions (FAQs)
The UC3876N is a high-frequency switching regulator, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the IC should be placed close to the input capacitors. The switching node (pin 11) should be kept away from sensitive nodes, and the output filter components should be placed close to the output pins.
The inductor selection depends on the output current, switching frequency, and output voltage. TI recommends using a shielded inductor with a low DC resistance and high saturation current. The inductor value should be chosen to ensure that the peak inductor current is within the recommended range (typically 1.5 to 2 times the output current).
The UC3876N has an absolute maximum input voltage rating of 30V, but the recommended maximum input voltage is 24V. Exceeding the recommended input voltage can reduce the IC's reliability and lifespan.
The UC3876N requires a compensation network to ensure stability. TI recommends using a Type II compensation network, which consists of a resistor, capacitor, and optional zero-pin. The compensation values depend on the output voltage, output current, and switching frequency, and can be calculated using TI's compensation calculator or by following the application note.
Yes, the UC3876N can be used in a synchronous rectification configuration, which can improve efficiency at high output currents. However, this requires additional components, such as a synchronous rectifier FET and a Schottky diode, and careful layout and design to ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3876N Overview

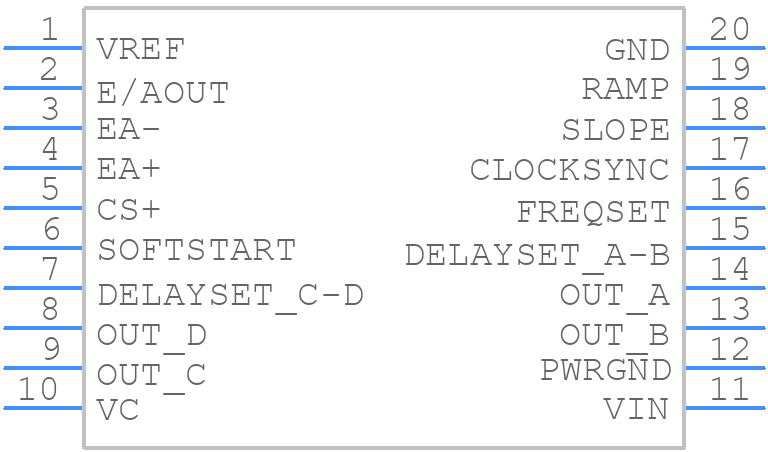

Use the download button to access the UC3876N schematic symbol, PCB footprint, and 3D model.
