- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UC3901DW
- Part Number UC3901DW
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW (R-PDSO-G16)
- Released Date Sep 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UC3901DW Details
-
Manufacturer Part Number:
UC3901DW
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
UC3901DW Frequently Asked Questions (FAQs)
-
The UC3901DW is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the input capacitors and keeping the input and output traces as short as possible. A solid ground plane and proper decoupling are also essential.
-
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the device properly and use a solid ground plane.
-
The UC3901DW can handle input voltages up to 40V, but it's recommended to keep the input voltage below 30V for optimal performance and reliability.
-
The UC3901DW is rated for operation up to 125°C, but it's recommended to derate the device for high-temperature operation. Consult the datasheet for derating guidelines and ensure proper thermal management.
-
To troubleshoot issues, start by checking the input and output voltages, and ensure that the device is properly decoupled. Check for any signs of overheating, and verify that the component values and layout meet the recommended guidelines. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
Community Provided
System Verified
Community Approved
UC3901DW Overview

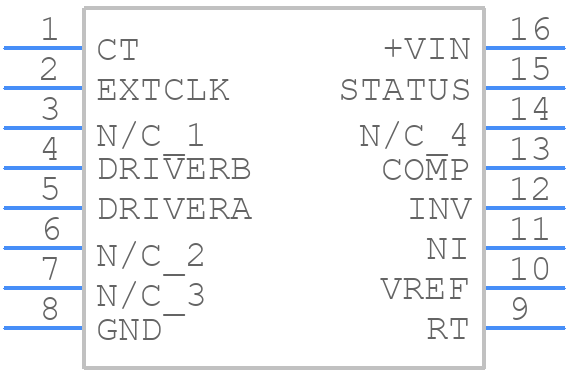

Use the download button to access the UC3901DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC390,
or try a keyword search, such as Other Signal Circuits
