- Part Number UC39432D
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Dec 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UC39432D Details
-
Manufacturer Part Number:
UC39432D
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
UC39432D Frequently Asked Questions (FAQs)
-
TI recommends a compact layout with short traces, and placing the IC close to the input capacitors. Additionally, a solid ground plane and a shielded enclosure can help reduce EMI and noise.
-
To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance is recommended.
-
The UC39432D can handle up to 40V input voltage, but it's recommended to operate within the specified range of 12V to 35V for optimal performance and reliability.
-
The UC39432D is rated for operation up to 125°C, but it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
-
Start by checking the input voltage, output voltage, and current. Verify that the component values and layout meet the recommended specifications. Also, check for any signs of overheating, and ensure that the device is properly soldered and connected.
Trust Checks
Community Provided
System Verified
Community Approved
UC39432D Overview

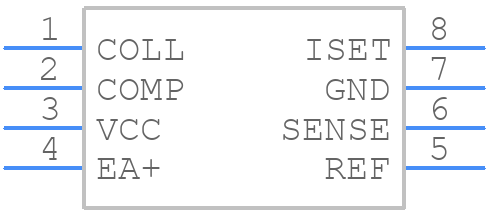

Use the download button to access the UC39432D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC394,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
