Part Image

UCB1H101MNL1GS - Nichicon

Description: Nichicon 100μF 50 V dc Aluminium Electrolytic Capacitor, CB Series 7000h 10 (Dia.) x 10mm

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

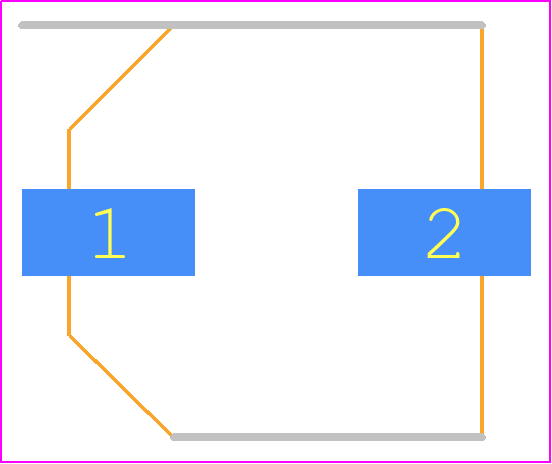

UCB1H101MNL1GS - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 10*10-5
click to zoom

3D Models

UCB1H101MNL1GS - Nichicon  - 3D model - Capacitor Al Electrolytic - 10*10-5
click to zoom

Risk Rank

UCB1H101MNL1GS — Nichicon
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Parts related to UCB1H101MNL1GS

Showing 0 results

UCB1H101MNL1GS Alternates

Showing results

Image Part Number Design Risk Rank
Part Image EMLF500ADA101MJA0G Nippon Chemi-con Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 4141, ROHS COMPLIANT

Part Image EMLE500ADA101MJA0G Nippon Chemi-con Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 4141, ROHS COMPLIANT
