UCBBJR26 - Cinch Connectivity Solutions

Description: RF Connectors / Coaxial Connectors BNC BLKD JK INSL R/A Board MNT

Download UCBBJR26 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCBBJR26 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

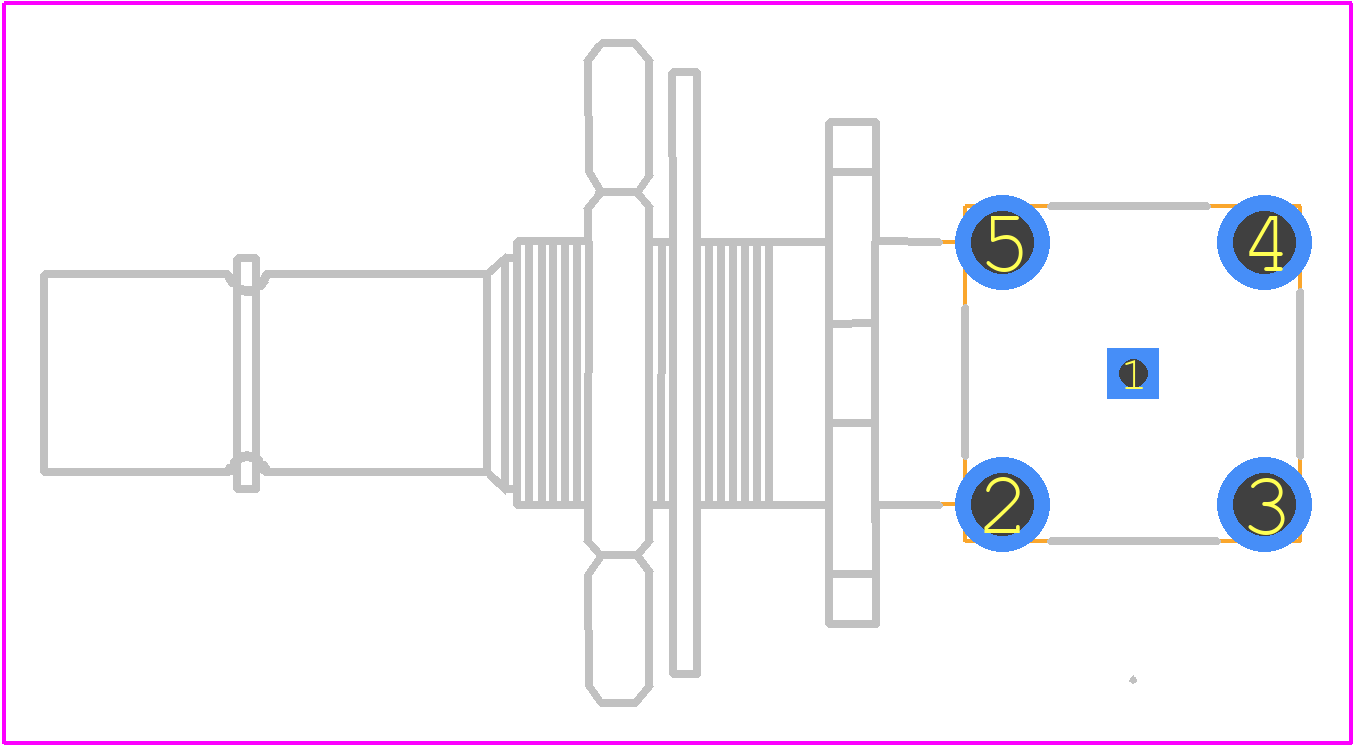

UCBBJR26 - Cinch Connectivity Solutions PCB footprint - Other - Other - UCBBJR26-2
click to zoom

UCBBJR26 Details

  • Manufacturer Part Number:

    UCBBJR26

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

UCBBJR26 Frequently Asked Questions (FAQs)

  • The recommended torque for the UCBBJR26 connector is 10-12 in-lbs (1.1-1.4 Nm) for the jack screws and 5-7 in-lbs (0.6-0.8 Nm) for the plug screws.
  • Yes, the UCBBJR26 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-STD-202, Method 204, Condition D.
  • Yes, the UCBBJR26 is designed to be compatible with other Cinch Connectivity Solutions products, including their range of circular connectors and cable assemblies.
  • The operating temperature range of the UCBBJR26 is -55°C to +125°C (-65°F to +257°F).
  • Yes, the UCBBJR26 is designed to operate in harsh environments, including those with high humidity and exposure to chemicals. It meets the requirements of MIL-STD-202, Method 106, and IEC 60529, IP67.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCBBJR26 Overview

Use the download button to access the UCBBJR26 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like UCBBJ, or try a keyword search, such as RF BNC Connectors
