UCBBJR29 - Cinch Connectivity Solutions

Description: RF Connectors / Coaxial Connectors BNC BLKD Jack R/A 75 Ohm Board Mount

Download UCBBJR29 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCBBJR29 - Cinch Connectivity Solutions - PCB symbol
click to zoom

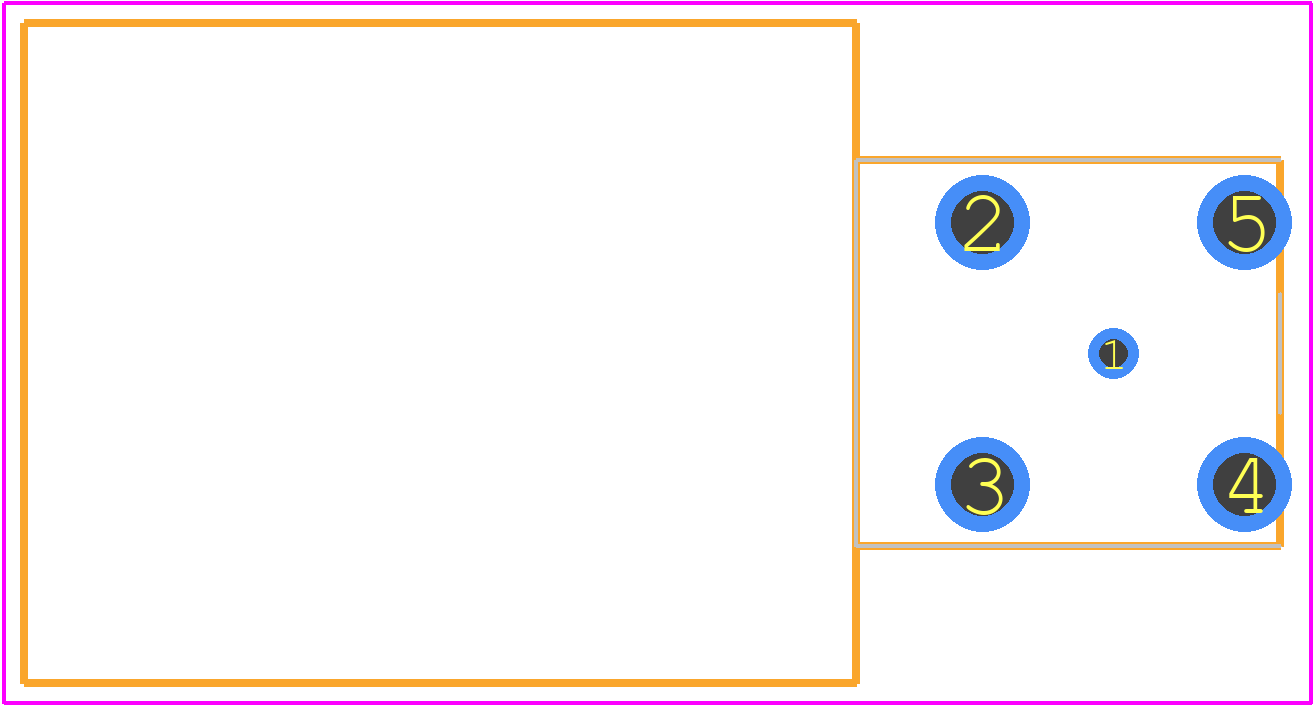

PCB Footprints
UCBBJR29 - Cinch Connectivity Solutions PCB footprint - Other - Other - UCBBJR29-2
click to zoom
3D Models
UCBBJR29 - Cinch Connectivity Solutions - 3D model - Other - UCBBJR29-2
click to zoom

UCBBJR29 Details

  • Manufacturer Part Number:

    UCBBJR29

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    8

  • Body Depth:

    0.773 inch

  • Body Diameter:

    0.593 inch

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number of Ports:

    1

  • Operating Frequency-Max:

    3 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.13 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

UCBBJR29 Frequently Asked Questions (FAQs)

  • The recommended torque for the UCBBJR29 connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.5-4 in-lbs) for the jackscrew.
  • Yes, the UCBBJR29 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the UCBBJR29 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C, and is resistant to moisture, salt, and corrosion.
  • The UCBBJR29 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the UCBBJR29 connector is part of the UCBBJR series, and is compatible with other connectors in the same series, allowing for flexibility in design and application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCBBJR29 Overview

Use the download button to access the UCBBJR29 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCBBJ, or try a keyword search, such as RF BNC Connectors
