UCC12040DVE - Texas Instruments

Description: Isolated DC/DC Converters 500mW, high efficiency 3kVrms isolated DC-DC converter 16-SO-MOD -40 to 125

Download UCC12040DVE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

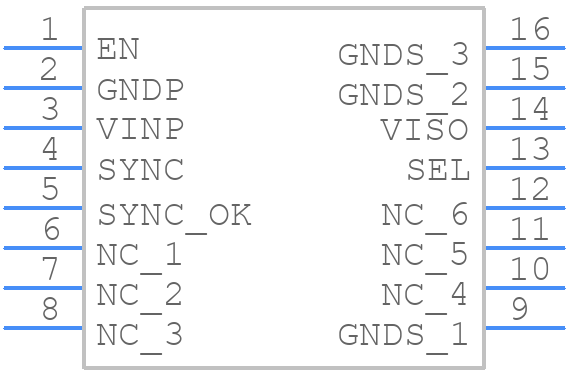

UCC12040DVE - Texas Instruments - PCB symbol
