A good PCB layout for the UCC12051QDVERQ1 involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
To ensure the UCC12051QDVERQ1 operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress, and that the thermal design is adequate to keep the junction temperature within the recommended range.
Key considerations for thermal design with the UCC12051QDVERQ1 include providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device. The thermal design should be able to keep the junction temperature below the maximum recommended value of 150°C.
To troubleshoot issues with the UCC12051QDVERQ1, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are properly sized. Use an oscilloscope to check for signs of oscillation or instability, and consult the datasheet and application notes for guidance.
The enable pin of the UCC12051QDVERQ1 allows the device to be turned on and off, which can be useful for power sequencing and reducing standby power consumption. However, it also requires careful consideration of the system's power-up and power-down sequences to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC12051QDVERQ1 Overview

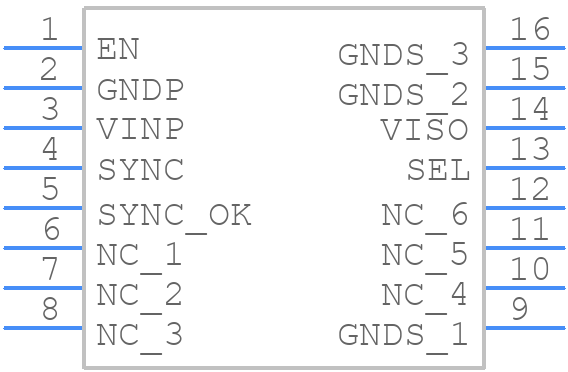

Use the download button to access the UCC12051QDVERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC12,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
