Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
The UCC14140QDWNRQ1 has a thermal pad that must be connected to a heat sink or a thermal via to ensure proper thermal management. The thermal pad should be connected to a copper plane on the PCB, and the heat sink should be designed to dissipate the maximum power dissipation of the device.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure low impedance and high reliability.
To troubleshoot issues with the UCC14140QDWNRQ1, use a scope to measure the input and output voltages, and check for signs of oscillation or instability. Also, verify that the PCB layout and component values meet the recommended specifications, and check for any signs of overheating or thermal issues.
Yes, the UCC14140QDWNRQ1 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to follow the specific requirements and guidelines of the target application, and to consult with Texas Instruments for any specific requirements or certifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC14140QDWNRQ1 Overview

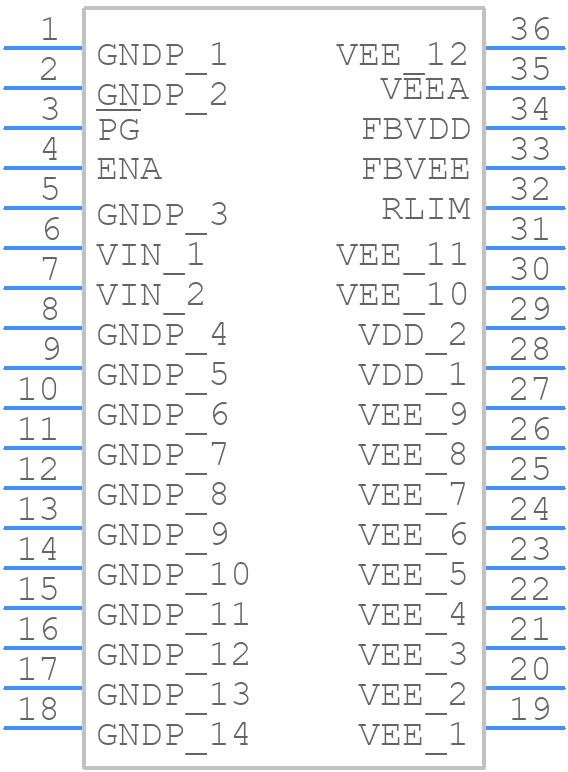

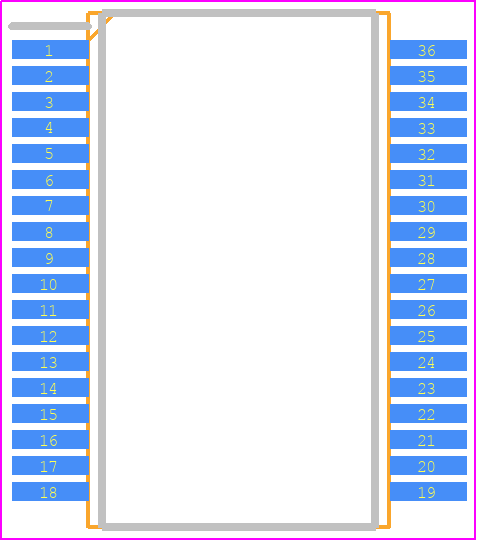

Use the download button to access the UCC14140QDWNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC14,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
