Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
The UCC14141QDWNRQ1 has a thermal pad that must be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended thermal design guidelines in the datasheet.
The UCC14141QDWNRQ1 has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management and consider derating the device's performance at higher temperatures.
Start by reviewing the datasheet and application notes to ensure proper device operation and configuration. Use oscilloscopes and other diagnostic tools to measure signals and identify potential issues. Texas Instruments also provides support resources, such as forums and technical support teams, to help troubleshoot issues.
No, the UCC14141QDWNRQ1 is designed for isolated DC-DC converter applications. It's not suitable for non-isolated designs, as it requires a transformer or other isolation component to operate correctly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC14141QDWNRQ1 Overview

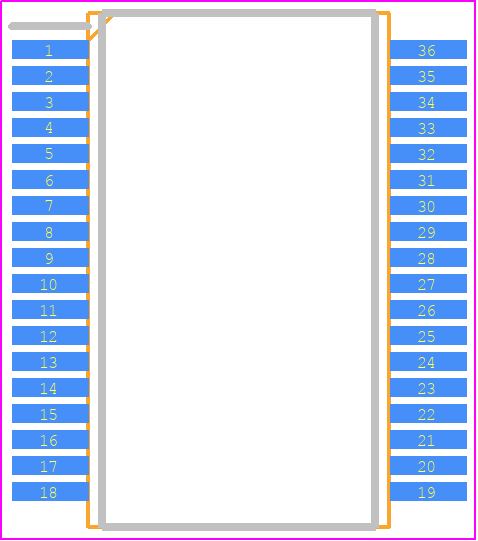

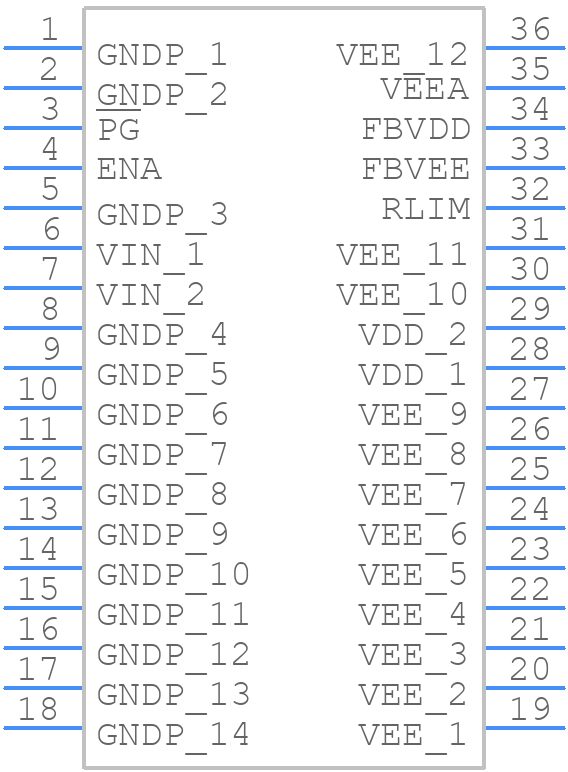

Use the download button to access the UCC14141QDWNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC14,
or try a keyword search, such as Switching Regulator or Controllers
