Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. The capacitor should also have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
The UCC15241QDWNRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the device can be derated for operation above 85°C, and the maximum junction temperature should not exceed 150°C.
To troubleshoot issues with the UCC15241QDWNRQ1, start by checking the PCB layout and component values against the recommended design. Verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the input and output waveforms, and check for signs of oscillation or instability. Consult the application notes and datasheet for guidance on troubleshooting and debugging techniques.
Yes, the UCC15241QDWNRQ1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and is also suitable for use in industrial and medical applications that require high reliability and robustness.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC15241QDWNRQ1 Overview

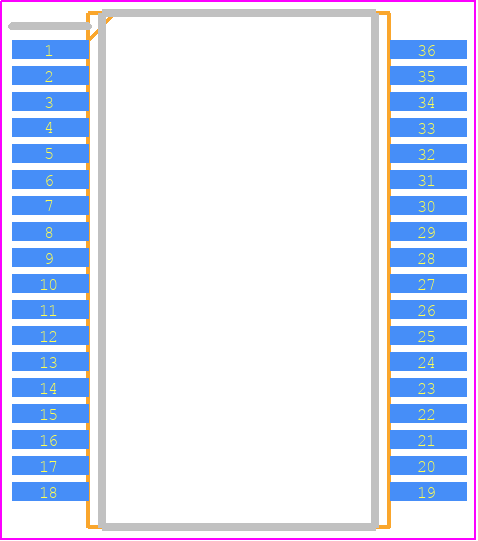

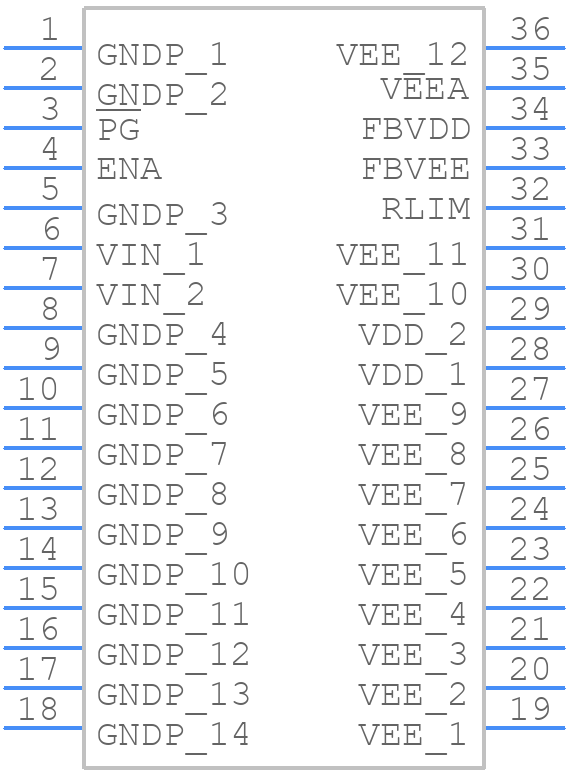

Use the download button to access the UCC15241QDWNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC15,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
