A good PCB layout for the UCC20225AQNPLRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 10uF) between VIN and GND, and a smaller capacitor (e.g., 100nF) between VCC and GND. Place these capacitors close to the device and use a low-inductance path to the power source.
The UCC20225AQNPLRQ1 is rated for operation from -40°C to 125°C (TJ). However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's specifications at high temperatures.
To troubleshoot issues, start by verifying the power supply and decoupling, then check the input and output voltage levels, and ensure the device is properly configured. Use an oscilloscope to monitor the device's behavior and look for signs of oscillation or instability. Consult TI's application notes and support resources for guidance.
The UCC20225AQNPLRQ1 is a commercial-grade device, but it can be used in high-reliability applications with proper design, testing, and validation. However, for safety-critical applications, consider using a device with specific safety certifications (e.g., ASIL, IEC 61508) and consult with TI's safety experts.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC20225AQNPLRQ1 Overview

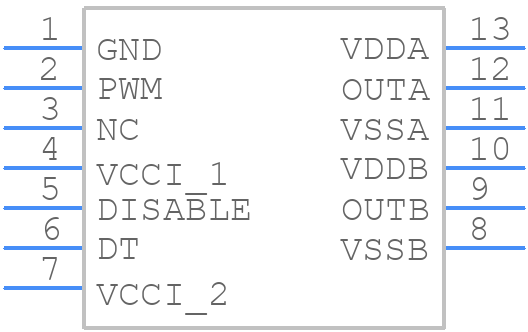

Use the download button to access the UCC20225AQNPLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC20,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
