UCC20520DWR - Texas Instruments

Description: 4-A, 6-A, 5.7-kVRMS Isolated Dual-Channel Gate Driver with Single Input

Download UCC20520DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

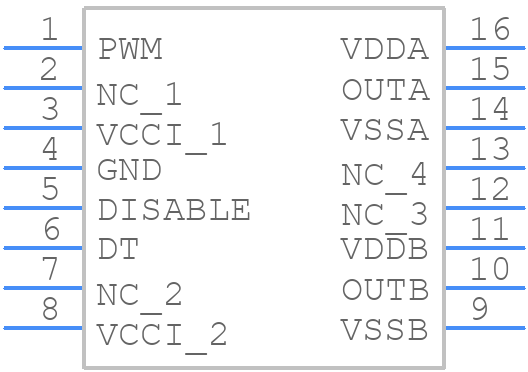

UCC20520DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC20520DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - UCC20520DWR
click to zoom
3D Models
UCC20520DWR - Texas Instruments - 3D model - Small Outline Packages - UCC20520DWR
click to zoom

UCC20520DWR Details

  • Manufacturer Part Number:

    UCC20520DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC20520DWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC20520DWR involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The UCC20520DWR requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low output voltage ripple to power the device. The power sequencing requirement is to power up the VCC pin before the VIN pin.
  • The maximum operating frequency of the UCC20520DWR is 100 kHz. Operating the device at higher frequencies can lead to increased power consumption, reduced efficiency, and potential instability. It's recommended to operate the device at the lowest frequency necessary for the application.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 22uF. The output capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 47uF. The capacitor selection should be based on the specific application requirements and the device's operating frequency.
  • The UCC20520DWR has a maximum junction temperature of 150°C. To ensure proper heat dissipation, it's recommended to use a heat sink or a thermal pad, and to keep the device away from other heat sources. The device's thermal resistance (θJA) is 45°C/W.
