UCC21220AD - Texas Instruments

Description: 4-A, 6-A, 3.0-kVRMS Isolated Dual-Channel Gate Driver

Download UCC21220AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

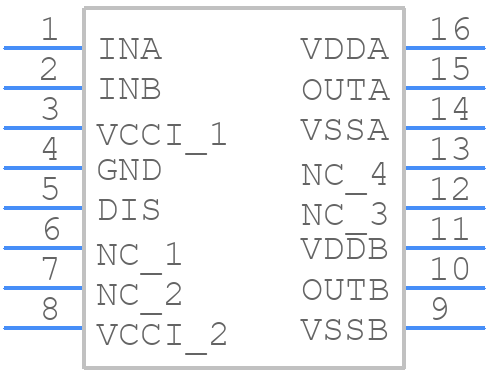

Symbol
UCC21220AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC21220AD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - soic-D
click to zoom
3D Models
UCC21220AD - Texas Instruments - 3D model - Small Outline Packages - soic-D
click to zoom

UCC21220AD Details

  • Manufacturer Part Number:

    UCC21220AD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

UCC21220AD Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21220AD involves keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
  • Choose input and output capacitors with low ESR, high ripple current rating, and suitable voltage rating. X5R or X7R ceramic capacitors are recommended. The datasheet provides guidance on capacitor selection and calculation of capacitance values.
  • The UCC21220AD is rated for operation from -40°C to 125°C. High temperatures can affect the device's efficiency, output voltage regulation, and reliability. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The UCC21220AD has a built-in OCP and SCP feature. Set the OCP threshold using the OCSET pin, and the device will automatically shut down in case of an overcurrent event. SCP is enabled by default and can be adjusted using external resistors.
  • The recommended startup sequence is: 1) Apply input voltage, 2) Wait for the internal voltage regulator to stabilize, 3) Enable the device using the EN pin. For power-down, reverse the sequence. This ensures a controlled startup and shutdown process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC21220AD Overview

Use the download button to access the UCC21220AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
