UCC21225ANPLT - Texas Instruments

Description: 4-A, 6-A, 2.5-kVRMS Isolated Dual-Channel Gate Driver in LGA

Download UCC21225ANPLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

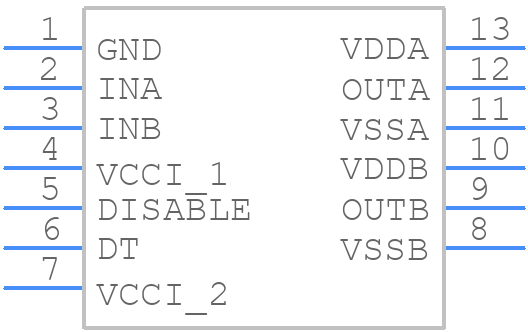

UCC21225ANPLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC21225ANPLT - Texas Instruments PCB footprint - Other - Other - NPL0013A
click to zoom
3D Models
UCC21225ANPLT - Texas Instruments - 3D model - Other - NPL0013A
click to zoom

UCC21225ANPLT Details

  • Manufacturer Part Number:

    UCC21225ANPLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-06-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-XBGA-B13

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFLGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    5 mm

UCC21225ANPLT Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21225ANPLT involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 4.5V to 18V, and that the output voltage is within the recommended range of 0.8V to 15V.
  • The UCC21225ANPLT has a maximum output current capability of 2A. However, it's recommended to limit the output current to 1.5A for optimal performance and to prevent overheating.
  • To protect the UCC21225ANPLT from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to monitor the input voltage and shut down the device if it exceeds the recommended range. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage.
  • The recommended input capacitor value for the UCC21225ANPLT is 10uF to 22uF, with a voltage rating of 25V or higher. A ceramic capacitor with an X7R or X5R dielectric is recommended.
