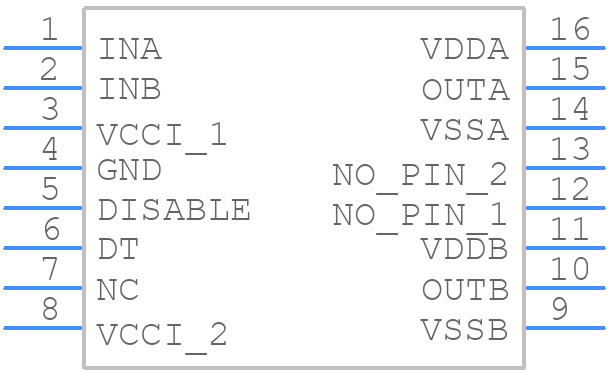

UCC21320QDWKQ1 - Texas Instruments

UCC21320QDWKQ1 Details

• Manufacturer Part Number:

  UCC21320QDWKQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-02-27

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Current-Max:

  6 A

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  2 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  25 V

• Supply Voltage1-Min:

  9.2 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  30 µs

• Turn-on Time:

  30 µs

• Width:

  7.5 mm
