Texas Instruments provides a recommended PCB layout in the UCC21331 evaluation module documentation, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow these guidelines to minimize EMI and ensure reliable operation.
The gate resistor value depends on the specific application requirements, such as the switching frequency, gate drive voltage, and power MOSFET characteristics. A general guideline is to start with a value between 10 ohms and 100 ohms and adjust based on the observed gate voltage waveform and switching performance.
The maximum allowed voltage on the VCC pin is 15V. To protect it from overvoltage, a voltage regulator or a zener diode can be used to clamp the voltage to a safe level. Additionally, a TVS diode can be used to protect against voltage transients and spikes.
The UCC21331CDR requires a proper bias voltage and configuration to ensure reliable operation with a specific power MOSFET. Refer to the power MOSFET datasheet and the UCC21331CDR datasheet for guidance on selecting the correct bias voltage, gate drive voltage, and configuration resistors.
The UCC21331CDR has a maximum junction temperature of 150°C. To ensure reliable operation, a proper heat sinking and thermal management strategy is essential. This includes selecting a suitable heat sink, applying thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21331CDR Overview

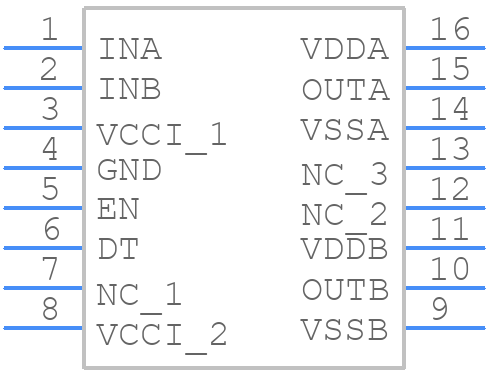

Use the download button to access the UCC21331CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
