UCC21520AQDWQ1 - Texas Instruments

Description: Automotive 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver

Download UCC21520AQDWQ1 Model

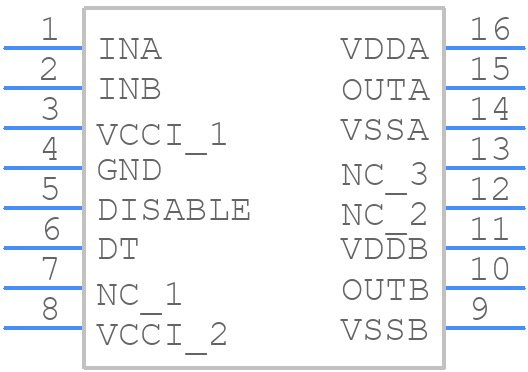

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520AQDWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21520AQDWQ1 - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21520AQDWQ1 Details

  • Manufacturer Part Number:

    UCC21520AQDWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-06-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21520AQDWQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520AQDWQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loop areas. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure reliable operation in high-temperature environments, ensure proper thermal management by providing adequate heat sinking, using a thermally conductive material, and keeping the junction temperature (TJ) below the maximum rating of 150°C. Also, consider derating the device's performance at high temperatures.
  • When selecting the input capacitor (CIN), consider the capacitor's voltage rating, ESR, and capacitance value. A low-ESR capacitor with a voltage rating above the maximum input voltage and a capacitance value in the range of 10-22 μF is recommended. TI provides guidance on capacitor selection in the datasheet and application notes.
  • To troubleshoot issues with the UCC21520AQDWQ1, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes and thermal imaging cameras to identify issues. Consult the datasheet, application notes, and TI's support resources for guidance.
  • The UCC21520AQDWQ1 is a high-voltage, high-frequency DC-DC converter with a unique combination of features, such as high input voltage (up to 80V), high switching frequency (up to 1.2 MHz), and low quiescent current. Compare the UCC21520AQDWQ1's features, performance, and package options with other TI devices, such as the UCC21510 or UCC28600, to determine the best fit for your application.
