UCC21521ADW - Texas Instruments

Description: 4-A, 6-A, 5.7-kVRMS Isolated Dual-Channel Gate Driver with Enable

Download UCC21521ADW Model

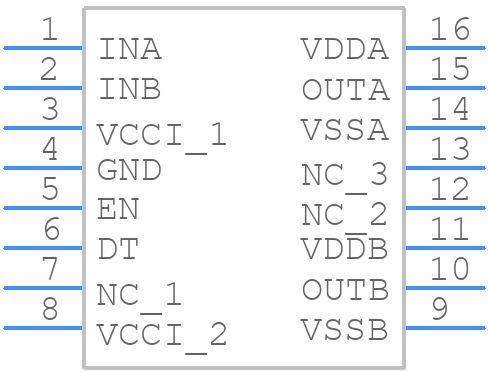

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21521ADW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - soic-1
click to zoom
3D Models
UCC21521ADW - Texas Instruments  - 3D model - Small Outline Packages - soic-1
click to zoom

UCC21521ADW Details

  • Manufacturer Part Number:

    UCC21521ADW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-11-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21521ADW Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21521ADW involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power traces. TI provides a recommended PCB layout in the application note SLUA623.
  • To ensure the UCC21521ADW operates within its SOA, monitor the device's junction temperature (TJ) and ensure it does not exceed 150°C. Also, keep the input voltage (VIN) within the recommended range (4.5V to 18V), and avoid exceeding the maximum current ratings for the output (IOUT) and input (IIN).
  • When selecting L and COUT, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. A good starting point is to choose an inductor with a high saturation current rating and a capacitor with a low ESR. TI provides a detailed inductor and capacitor selection guide in the application note SLUA623.
  • The UCC21521ADW has a built-in OCP and SCP feature. To implement OCP, set the OCP threshold voltage (VOCSET) using an external resistor divider. For SCP, connect a sense resistor (RS) in series with the output inductor to detect overcurrent conditions. TI provides a detailed implementation guide in the application note SLUA623.
  • To ensure reliable operation, ensure good thermal conduction between the UCC21521ADW and the PCB. Use a thermal pad or thermal interface material to improve heat transfer. Keep the device's junction temperature (TJ) below 150°C, and avoid operating the device in high-temperature environments (above 85°C).
