A good PCB layout for the UCC21521ADWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loop areas. TI provides a recommended layout in the datasheet and application notes.
To ensure reliable operation in high-temperature environments, ensure proper thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range (–40°C to 150°C).
When selecting an input capacitor for the UCC21521ADWR, consider the capacitor's voltage rating, capacitance value, equivalent series resistance (ESR), and ripple current rating. A low-ESR capacitor with a high ripple current rating is recommended to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the UCC21521ADWR, start by verifying the input voltage, output voltage, and current levels. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes and current probes to measure waveforms and identify potential issues. Consult TI's application notes and technical support resources for guidance.
The enable pin (EN) allows for power sequencing and shutdown control. Ensure that the EN pin is properly driven and decoupled to prevent unwanted shutdowns or oscillations. A pull-up resistor and a capacitor may be required to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21521ADWR Overview

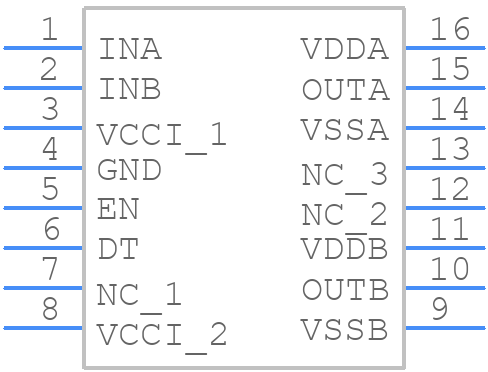

Use the download button to access the UCC21521ADWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
