A good PCB layout for the UCC21521CDW involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loop areas. TI provides a recommended layout in the datasheet and application notes.
To ensure the UCC21521CDW operates within its SOA, monitor the device's junction temperature (TJ), input voltage (VIN), and output current (IOUT). Use thermal design and layout techniques to keep TJ below 150°C, and ensure VIN and IOUT are within the recommended operating ranges.
When selecting CIN and COUT, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. Choose capacitors with low ESR, sufficient capacitance to filter out ripple, and a voltage rating that exceeds the maximum input/output voltage.
To troubleshoot issues with the UCC21521CDW, use an oscilloscope to observe the switching waveforms, output voltage, and input voltage. Check for proper PCB layout, component selection, and soldering. Consult the datasheet, application notes, and TI's support resources for guidance.
The EN pin allows for power sequencing and shutdown control. Ensure the EN pin is properly driven and decoupled to prevent unwanted shutdowns or power-up issues. Use a pull-up resistor and a capacitor to filter out noise and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21521CDW Overview

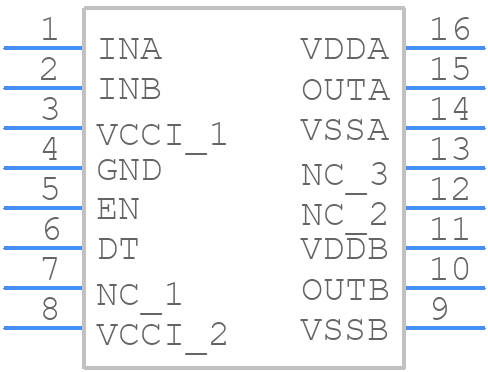

Use the download button to access the UCC21521CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
