UCC21521DW - Texas Instruments

Description: 4-A, 6-A, 5.7-kVRMS Isolated Dual-Channel Gate Driver with Enable

Download UCC21521DW Model

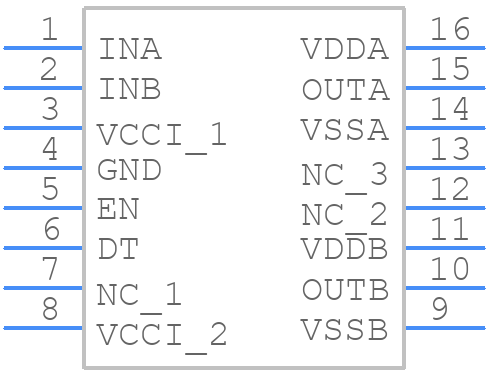

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21521DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21521DW - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21521DW Details

  • Manufacturer Part Number:

    UCC21521DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-11-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21521DW Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21521DW involves keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas for the high-frequency circuits. TI provides a recommended layout in the application note SLUA623.
  • When selecting a transformer for the UCC21521DW, consider the voltage ratio, turns ratio, magnetizing inductance, and leakage inductance. TI recommends using a transformer with a turns ratio of 1:1 or 1:1.5, and a magnetizing inductance of at least 10 μH. The application note SLUA623 provides more guidance on transformer selection.
  • To ensure reliable operation of the UCC21521DW at high temperatures, it's essential to provide adequate heat sinking, use a thermal interface material, and keep the device away from heat sources. The device has a maximum junction temperature of 150°C, and TI recommends keeping the case temperature below 100°C for reliable operation.
  • The UCC21521DW has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The recommended threshold values are 1.5 A to 3 A, depending on the application requirements. TI provides more guidance on implementing overcurrent protection in the datasheet and application notes.
  • The main differences between the UCC21521DW and the UCC21520 are the output voltage range, maximum output current, and package type. The UCC21521DW has a wider output voltage range (up to 1200 V) and higher maximum output current (up to 5 A) compared to the UCC21520. The UCC21521DW is also available in a smaller package (SOIC-8) compared to the UCC21520 (SOIC-16).
