Description:Optically Isolated Gate Drivers Automotive, 4-A, 6-A 5-kVRMS dual-channel isolated gate driver with EN and DT pins for IGBT/SiC</ 14-SOIC -40 to 150
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To select the right gate driver IC, consider factors such as the type of power device (MOSFET, IGBT, etc.), switching frequency, voltage rating, current rating, and package type. The UCC21551CQDWKRQ1 is suitable for high-frequency, high-power applications with MOSFETs or IGBTs. Consult the datasheet and application notes for more information.
The maximum allowable voltage on the VCC pin is 15V, as specified in the datasheet. Exceeding this voltage may damage the device. It's essential to ensure that the power supply voltage is within the recommended range to maintain device reliability.
To troubleshoot issues, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the input signals are within the recommended range. Use oscilloscopes or logic analyzers to monitor the input and output signals. Consult the datasheet, application notes, and Texas Instruments' support resources for further guidance.
The UCC21551CQDWKRQ1 has an operating junction temperature range of -40°C to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly cooled and that the maximum junction temperature is not exceeded to maintain device reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21551CQDWKRQ1 Overview

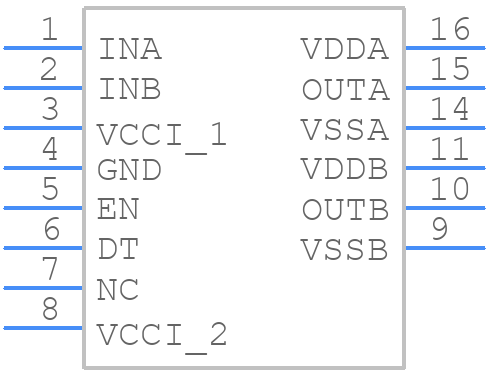

Use the download button to access the UCC21551CQDWKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
