Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
When selecting a gate driver IC, consider factors such as the type of power device (MOSFET, IGBT, etc.), voltage and current requirements, switching frequency, and isolation type (galvanic, capacitive, or transformer-based). The UCC21737QDWRQ1 is suitable for high-frequency, high-power applications with MOSFETs or IGBTs.
The maximum allowable voltage on the VCC pin is 25V, but it's recommended to operate within the specified range of 15V to 20V for optimal performance and reliability.
Proper thermal management involves providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. The UCC21737QDWRQ1 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal plane on the PCB.
The VREF pin is used to set the internal voltage reference for the gate driver. It should be connected to a stable voltage source, typically 5V or 3.3V, through a resistive divider network to ensure accurate voltage regulation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC21737QDWRQ1 Overview

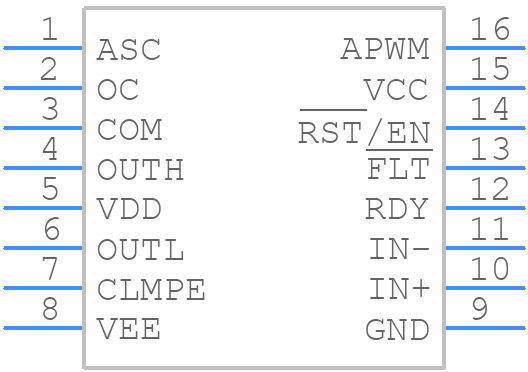

Use the download button to access the UCC21737QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
