UCC21738QDWRQ1 - Texas Instruments

Description: Optically Isolated Gate Drivers Automotive 10-A single-channel isolated gate driver for SiC/IGBT, active short-circuit protection 16-SOIC -40 to 125 5.7-kVRMS single channel isolated gate driver • AEC-Q100 Qualified with the following results: – Device temperature grade 1: -40°C to +125°C ambient operating temperature range – Device HBM ESD classification level 3A – Device CDM ESD classification level C6 • Functional Safety Quality-Managed – Documentation available to aid functional safety system d

Download UCC21738QDWRQ1 Model

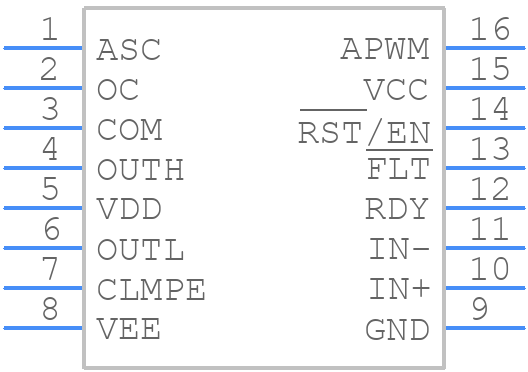

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21738QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16
click to zoom
3D Models
UCC21738QDWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - SOIC-16
click to zoom

UCC21738QDWRQ1 Details

  • Manufacturer Part Number:

    UCC21738QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    49 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21738QDWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The transformer selection depends on the specific application requirements, such as output voltage, current, and power level. Texas Instruments provides a transformer selection guide in the application note SLUA624, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
  • The maximum operating temperature range for UCC21738QDWRQ1 is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and cooling in the system design.
  • The UCC21738QDWRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note SLUA625 provides a detailed example of how to implement overcurrent protection and calculate the OCP threshold and response time.
  • The recommended input capacitor value and type depend on the specific application requirements, such as input voltage, current, and ripple requirements. A general guideline is to use a low-ESR ceramic capacitor with a value of 10uF to 22uF, as specified in the datasheet. However, it's essential to evaluate the input capacitor's performance and stability in the specific application.
