UCC21739QDWRQ1 - Texas Instruments

Description: Gate Drivers Automotive, single channel isolated gate driver for SiC/IGBT with advanced protection and high-CMTI 16-SOIC -40 to 125

Download UCC21739QDWRQ1 Model

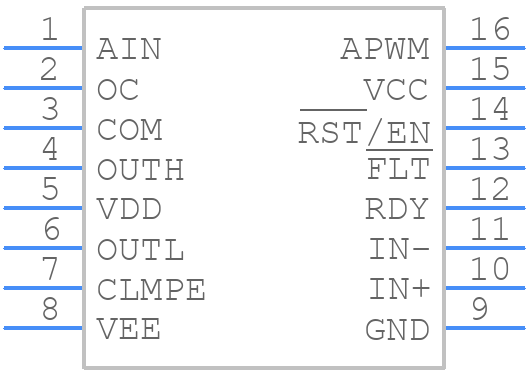

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21739QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Plastic SOIC
click to zoom
3D Models
UCC21739QDWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - 16-Pin Plastic SOIC
click to zoom

UCC21739QDWRQ1 Details

  • Manufacturer Part Number:

    UCC21739QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-04-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    61 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21739QDWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • When selecting a gate driver IC, consider factors such as the type of power device (MOSFET, IGBT, etc.), switching frequency, voltage rating, current rating, and package type. The UCC21739QDWRQ1 is a high-voltage, high-current gate driver suitable for high-power applications. Consult the datasheet and application notes to determine if it meets your specific requirements.
  • The UCC21739QDWRQ1 is a high-voltage, high-current gate driver with a unique feature set, including a high-side/low-side configuration, 4.5-A peak current, and 120-V maximum voltage rating. Compare the datasheet with other gate driver ICs from Texas Instruments, such as the UCC37322 or UCC27531, to determine which one best fits your specific application requirements.
  • To ensure reliable operation in high-temperature environments, follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range (-40°C to 125°C). Consult the datasheet and application notes for more information on thermal design considerations.
  • Common failure modes of the UCC21739QDWRQ1 include overvoltage, overcurrent, and overheating. To mitigate these failure modes, ensure proper voltage and current rating, use adequate heat sinking, and follow recommended PCB layout and thermal design practices. Additionally, implement protection circuits, such as overvoltage protection (OVP) and overcurrent protection (OCP), to prevent damage from abnormal operating conditions.
