UCC21759QDWQ1 - Texas Instruments

Description: Gate Drivers Automotive 10-A, 3.0-kV RMS Single Channel Isolated Gate Driver for SiC/IGBT  16-SOIC -40 to 150

Download UCC21759QDWQ1 Model

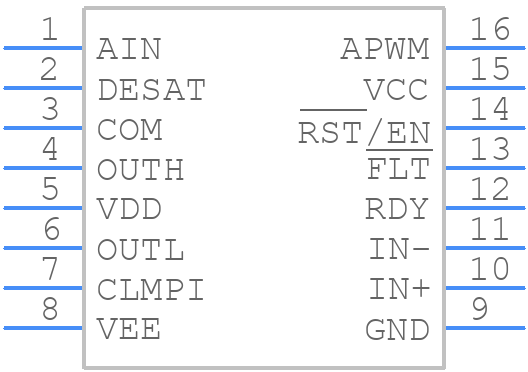

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21759QDWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21759QDWQ1 - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21759QDWQ1 Details

  • Manufacturer Part Number:

    UCC21759QDWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm
