Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
When selecting a gate driver IC, consider factors such as the type of power device (MOSFET, IGBT, etc.), switching frequency, voltage rating, current rating, and package type. The UCC21759QDWRQ1 is a high-voltage, high-current gate driver suitable for high-power applications. Consult the datasheet and application notes to determine if it meets your specific requirements.
The UCC21759QDWRQ1 has an operating temperature range of -40°C to 125°C, making it suitable for high-reliability applications. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider thermal management and derating in your design.
To ensure reliable operation in high-voltage applications, follow proper design and layout guidelines, including creepage and clearance considerations, and ensure that the device is properly biased and terminated. Additionally, consider using protective components such as TVS diodes and resistors to prevent overvoltage and overcurrent conditions.
The UCC21759QDWRQ1 is a high-voltage, high-current gate driver with a unique set of features, including a high output current capability, fast switching times, and a wide operating temperature range. Compared to other gate driver ICs from Texas Instruments, the UCC21759QDWRQ1 offers higher voltage and current ratings, making it suitable for high-power applications. Consult the datasheet and application notes to determine the best gate driver for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21759QDWRQ1 Overview

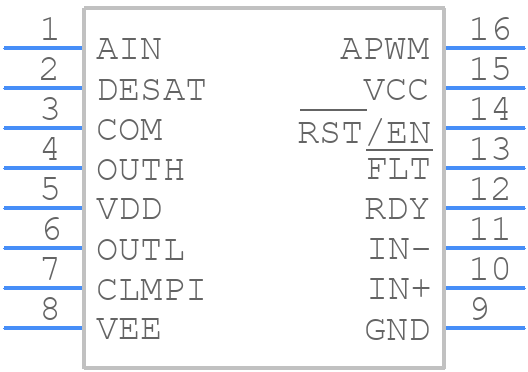

Use the download button to access the UCC21759QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
