UCC23514VDWV - Texas Instruments

Description: Gate Drivers 4-A, 12-V UVLO 5-KVrms opto compatible single channel gate driver with miller clamp and split output 8-SOIC -40 to 125

Download UCC23514VDWV Model

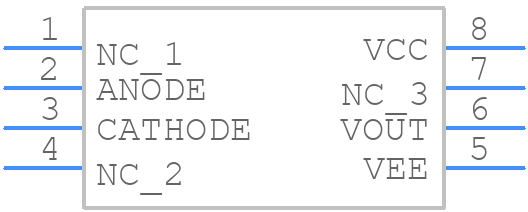

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC23514VDWV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
UCC23514VDWV - Texas Instruments  - 3D model - Small Outline Packages - DWV0008A
click to zoom

UCC23514VDWV Details

  • Manufacturer Part Number:

    UCC23514VDWV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-07-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    4.5 A

  • Output Peak Current Limit-Nom:

    5.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Max:

    33 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    20 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    14 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.105 µs

  • Turn-on Time:

    0.105 µs

  • Width:

    5.85 mm

UCC23514VDWV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the input current and frequency.
  • The UCC23514VDWV has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and ensure reliable operation.
  • Yes, the UCC23514VDWV is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing and validation as required by the specific application.
  • Troubleshooting issues with the UCC23514VDWV requires a systematic approach. Start by reviewing the application circuit and PCB layout to ensure they meet the recommended guidelines. Then, use oscilloscopes and other measurement tools to identify the root cause of the issue. Common issues include incorrect component values, poor PCB layout, or inadequate decoupling. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting and debugging.
