A good PCB layout for the UCC24624DT involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the input capacitors. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure the UCC24624DT operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal design and layout techniques to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range and the output current is within the specified maximum rating.
When selecting input capacitors for the UCC24624DT, consider the capacitor's voltage rating, capacitance value, and equivalent series resistance (ESR). Choose capacitors with a voltage rating higher than the maximum input voltage, and select a capacitance value that meets the required hold-up time. Low-ESR capacitors can help reduce energy losses and improve efficiency.
To troubleshoot issues with the UCC24624DT, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal design. Use oscilloscopes and thermal imaging cameras to identify voltage oscillations, current spikes, or hotspots. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Operating the UCC24624DT at high altitudes or in high-temperature environments can affect its performance and reliability. High altitudes can reduce the device's power handling capability, while high temperatures can increase the device's junction temperature and reduce its lifespan. Consult the datasheet and application notes for guidance on derating the device's performance and ensuring reliable operation in these environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC24624DT Overview

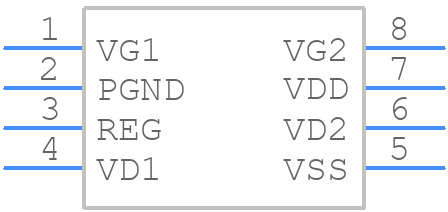

Use the download button to access the UCC24624DT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC24,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
