A good PCB layout for the UCC25630-1DDBR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
The inductor value depends on the input voltage, output voltage, and desired switching frequency. TI provides an inductor selection guide in the datasheet, and online tools like the TI Power Stage Designer can help with inductor selection and optimization.
The maximum ambient temperature for the UCC25630-1DDBR is 85°C, but the device can operate up to 125°C junction temperature. Be sure to follow the thermal design guidelines in the datasheet to ensure reliable operation.
Yes, the UCC25630-1DDBR can be used in synchronous rectification topologies. However, this requires careful design and layout to ensure proper synchronization and minimize losses. TI provides application notes and design guides for synchronous rectification designs.
To troubleshoot issues with the UCC25630-1DDBR, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure waveforms and identify potential issues. TI provides troubleshooting guides and application notes to help diagnose and fix common problems.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25630-1DDBR Overview

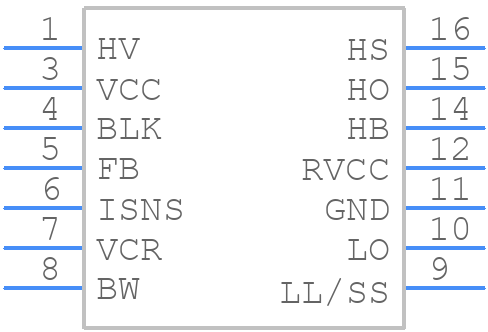

Use the download button to access the UCC25630-1DDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
