A good PCB layout for the UCC25630-2DDBR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. You can also use TI's WEBENCH online design tool to help select the optimal inductor value.
The UCC25630-2DDBR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the UCC25630-2DDBR can be used in a synchronous rectification topology. In fact, the device is optimized for synchronous rectification and can provide higher efficiency and lower losses compared to traditional diode rectification.
To troubleshoot issues with the UCC25630-2DDBR, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the voltage and current waveforms, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25630-2DDBR Overview

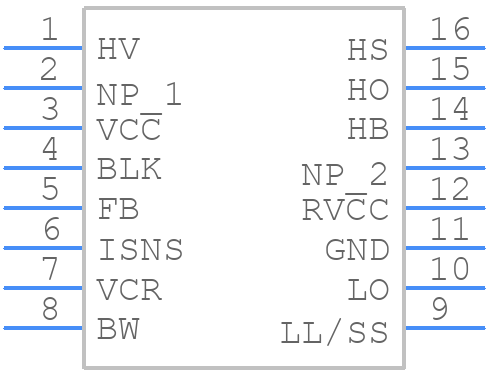

Use the download button to access the UCC25630-2DDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
