Texas Instruments provides a recommended PCB layout in the application note SLUA945, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and power rating. Texas Instruments provides a component selection guide in the datasheet and application notes, which can be used as a starting point. Additionally, online tools such as the TI Power Stage Designer can be used to simplify the component selection process.
The UCC25630-2DDBT has an operating temperature range of -40°C to 125°C. The device's performance may degrade at higher temperatures, and the maximum operating temperature should be derated based on the application's requirements. Texas Instruments provides thermal derating guidelines in the datasheet and application notes.
Common issues with the UCC25630-2DDBT can be troubleshooted by following a systematic approach, including checking the PCB layout, component values, and input/output voltage levels. Texas Instruments provides troubleshooting guidelines in the application notes and online resources, such as the TI E2E forum.
Yes, the UCC25630-2DDBT is compatible with lead-free soldering processes. Texas Instruments recommends following the JEDEC standard J-STD-020D for lead-free soldering, and provides guidelines for soldering conditions, such as temperature and time, in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25630-2DDBT Overview

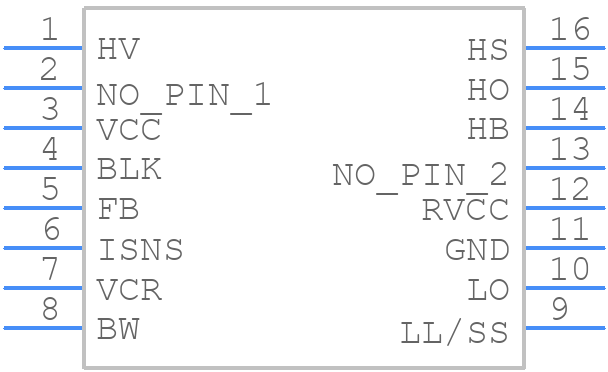

Use the download button to access the UCC25630-2DDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
