A good PCB layout for the UCC256402DDBR involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter the input voltage.
To ensure the UCC256402DDBR is operating within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended specifications.
The recommended input capacitor value for the UCC256402DDBR is typically in the range of 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve overall system stability.
To troubleshoot issues with the UCC256402DDBR, start by checking the input voltage and output current to ensure they are within the recommended specifications. Verify that the device is properly cooled and that the PCB layout is correct. Use an oscilloscope to check for output voltage ripple and noise. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the UCC256402DDBR is suitable for high-reliability and high-temperature applications. It has a junction temperature range of -40°C to 150°C and is qualified to automotive and industrial standards. However, it's essential to follow proper design and layout guidelines to ensure the device operates within its SOA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC256402DDBR Overview

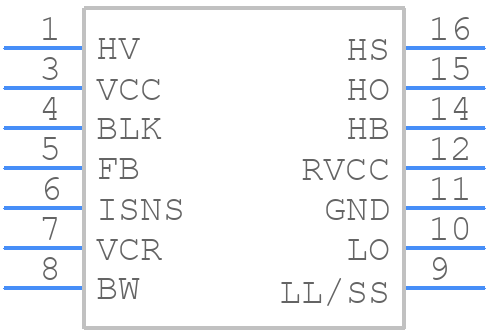

Use the download button to access the UCC256402DDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
