Texas Instruments provides a recommended PCB layout in the application note SLUA945, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as input voltage, output voltage, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA944, which includes a list of recommended transformers and guidelines for custom transformer design.
The maximum operating temperature range for UCC256402DDBT is -40°C to 125°C, as specified in the datasheet. However, the device can be operated at a higher temperature range with derating, as specified in the application note SLUA945.
The UCC256402DDBT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value, as described in the application note SLUA945.
The recommended input capacitor value depends on the specific application requirements, such as input voltage and ripple current. A general guideline is to use a capacitor with a value of 10uF to 22uF, as described in the application note SLUA945.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC256402DDBT Overview

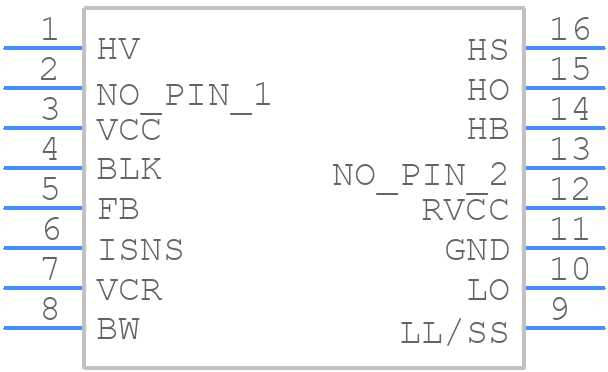

Use the download button to access the UCC256402DDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
