Description:Switching Controllers LLC resonant controller with ultra-low power, ultra-quiet standby operation and high voltage startup 14-SOIC -40 to 125
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and design requirements. Texas Instruments provides a component selection guide in the datasheet, and also offers online tools such as the Power Stage Designer and the Capacitor Selection Tool to help engineers choose the right components.
The UCC256404BDDBR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and thermal management is implemented to prevent overheating.
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which covers common issues such as startup problems, oscillations, and overcurrent protection. Engineers can also use online resources such as the TI E2E forum and the Power Management forum to seek help from experts and other users.
Yes, the UCC256404BDDBR is compatible with lead-free soldering processes. Texas Instruments ensures that all its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the device can be soldered using lead-free soldering techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC256404BDDBR Overview

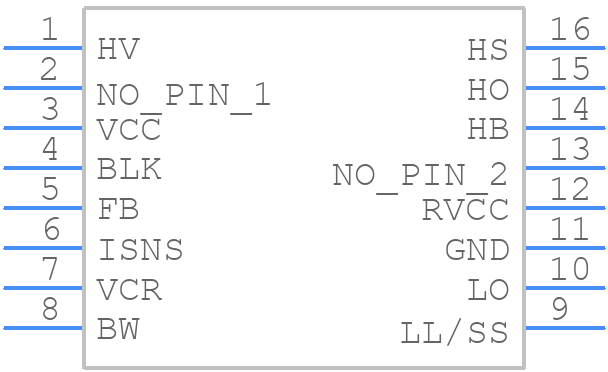

Use the download button to access the UCC256404BDDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
