A good PCB layout for the UCC25701D involves keeping the high-frequency components (e.g., the transformer, diodes, and capacitors) close together, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
When selecting a transformer for the UCC25701D, consider the output power, input voltage, and switching frequency. TI provides a transformer selection guide in the datasheet and application notes. You can also use online transformer selection tools or consult with a transformer manufacturer.
The UCC25701D has a maximum ambient temperature rating of 85°C (185°F). However, the device can operate at higher temperatures with derating. Consult the datasheet for thermal derating curves and guidelines.
To ensure proper synchronization, connect the SYNC pin to a clock signal with a frequency between 100 kHz and 1 MHz. The SYNC pin should be driven by a low-impedance source, and the clock signal should have a duty cycle between 40% and 60%.
The recommended input capacitor value for the UCC25701D depends on the input voltage, output power, and switching frequency. A general guideline is to use a capacitor with a value between 1 μF and 10 μF, with a voltage rating at least 1.5 times the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25701D Overview

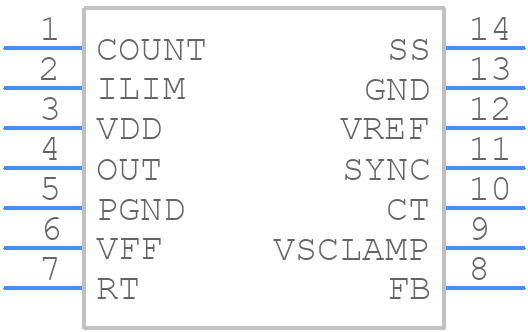

Use the download button to access the UCC25701D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
