Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA624, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
The maximum operating temperature range for UCC25702PWTR is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to 100°C for optimal performance.
The UCC25702PWTR does not have built-in OVP and UVP features. However, these features can be implemented using external components, such as voltage supervisors and comparators, to monitor the output voltage and shut down the device in case of overvoltage or undervoltage conditions.
The recommended input capacitor value and type depend on the specific application requirements, such as input voltage, current, and ripple requirements. A general guideline is to use a low-ESR ceramic capacitor with a value of 10uF to 22uF, as specified in the application note SLUA623.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25702PWTR Overview

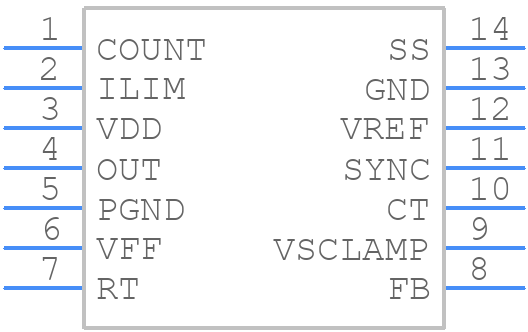

Use the download button to access the UCC25702PWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
