UCC25710DWR - Texas Instruments

Description: LED Lighting Drivers LED TV Backlight Controller

Download UCC25710DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

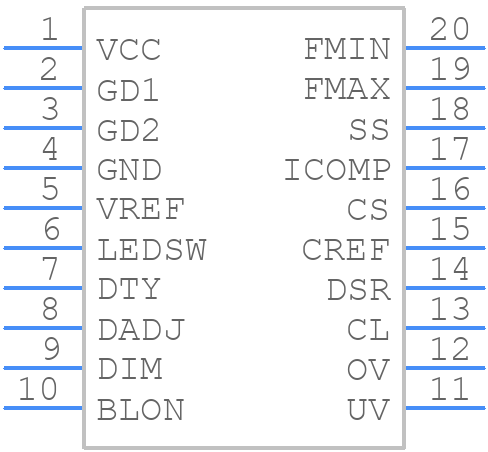

UCC25710DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC25710DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
UCC25710DWR - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

UCC25710DWR Details

  • Manufacturer Part Number:

    UCC25710DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.1 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    18 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UCC25710DWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCC25710DWR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The UCC25710DWR datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website to help engineers choose the right transformer for their specific application.
  • The UCC25710DWR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. Engineers should ensure that the device is operated within the recommended temperature range to prevent overheating and ensure reliable operation.
  • The UCC25710DWR has a built-in OVP feature that can be enabled by connecting a resistor and capacitor to the OVP pin. The datasheet provides a detailed description of the OVP circuit and the recommended component values. Engineers can also use external OVP circuits or ICs for additional protection.
  • The recommended input capacitor value for the UCC25710DWR depends on the input voltage and current requirements of the application. A general guideline is to use a capacitor with a value of 10-22 μF, but engineers should consult the datasheet and application notes for more specific guidance.
