Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA272, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
The maximum operating temperature range for UCC2580D-4 is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Texas Instruments provides a troubleshooting guide in the application note SLUA273, which includes common issues, symptoms, and solutions for troubleshooting UCC2580D-4. The guide covers topics such as oscillations, instability, and output voltage regulation, and provides tips for debugging and resolving issues.
No, UCC2580D-4 is designed for isolated DC-DC converter applications and is not suitable for non-isolated designs. The device's internal circuitry and pinout are optimized for isolated converter topologies, and using it in a non-isolated design may result in poor performance, instability, or even damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2580D-4 Overview

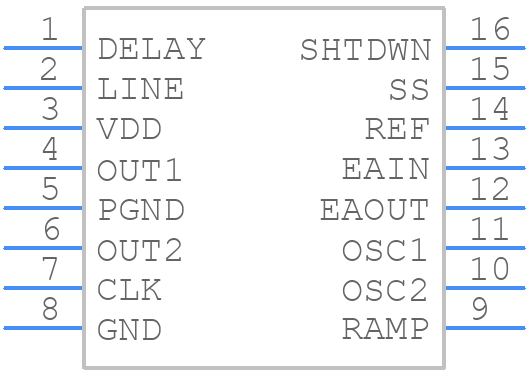

Use the download button to access the UCC2580D-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
