Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the application note SLUA623, which includes formulas and guidelines for selecting the right components.
The maximum junction temperature of the UCC27200ADRMT is 150°C. To ensure it stays within the safe operating range, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring the device temperature through the thermal pad or an external temperature sensor.
Texas Instruments provides a troubleshooting guide in the application note SLUA623, which includes steps to identify and resolve common issues, such as oscillations, instability, and overvoltage protection. Engineers can also use simulation tools, such as TI's WEBENCH Power Designer, to simulate and analyze the circuit behavior.
Yes, the UCC27200ADRMT is compatible with lead-free soldering processes. Texas Instruments ensures that its devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27200ADRMT Overview

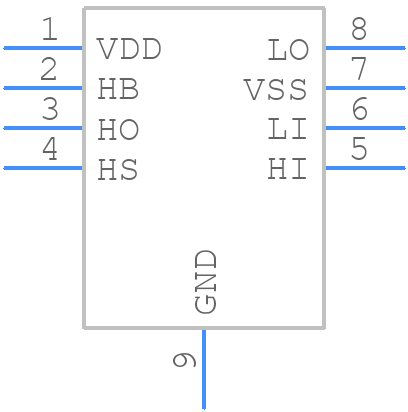

Use the download button to access the UCC27200ADRMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
