A good PCB layout for the UCC27200DRMR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
Proper thermal management involves providing a good thermal path from the device to a heat sink or the PCB, using thermal vias, and ensuring good airflow. The UCC27200DRMR has an exposed thermal pad that should be connected to a heat sink or a thermal plane on the PCB.
When selecting input and output capacitors, consider the voltage rating, capacitance value, ESR, and ripple current rating. The capacitors should be able to handle the maximum input voltage, output current, and ripple current. TI provides guidelines for capacitor selection in the datasheet and application notes.
Optimizing the compensation network involves selecting the right values for the compensation components (e.g., RCOMP, CCOMP) based on the specific application requirements and output filter characteristics. TI provides guidelines and tools for compensation network design in the datasheet and application notes.
When selecting an inductor, consider the inductance value, saturation current, and DC resistance. Ensure the inductor meets the required specifications by checking the datasheet and application notes, and by performing simulations and experiments to validate the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27200DRMR Overview

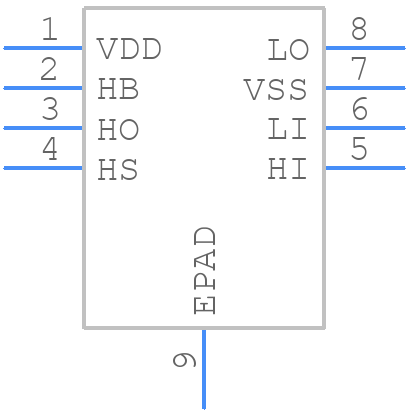

Use the download button to access the UCC27200DRMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
