A good PCB layout for the UCC27201ADRCT involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense lines to minimize noise and improve accuracy.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set to a value that is within the device's specified range, and the input voltage should be sufficient to support the desired output voltage. It's also crucial to ensure that the device is properly decoupled and that the output capacitors are of high quality.
The UCC27201ADRCT has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation. Additionally, the ambient temperature should be kept below 85°C to prevent overheating.
To troubleshoot issues with the UCC27201ADRCT, start by verifying that the input voltage and output voltage are within the specified ranges. Check the PCB layout for any signs of damage or overheating. Use an oscilloscope to monitor the output voltage and current waveforms, and verify that the device is not operating in an overcurrent or overvoltage condition. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To minimize EMI, it's essential to follow good PCB layout practices, such as keeping the high-frequency components away from sensitive analog circuits. Use shielding and filtering to reduce radiated emissions, and ensure that the device is properly decoupled. Additionally, use a common-mode choke or ferrite bead to filter the output voltage and reduce EMI.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27201ADRCT Overview

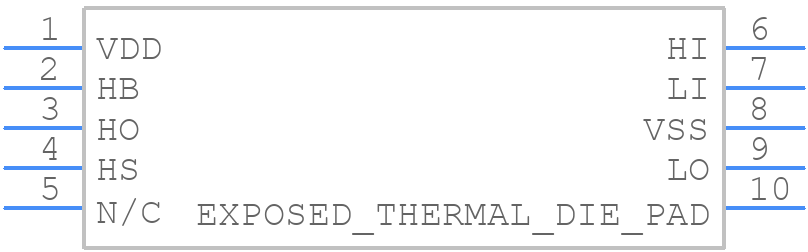

Use the download button to access the UCC27201ADRCT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
