UCC27201AQDMKRQ1 - Texas Instruments

Description: Automotive 120-V Boot, 3-A Peak, High Frequency, High-Side/Low-Side Driver

Download UCC27201AQDMKRQ1 Model

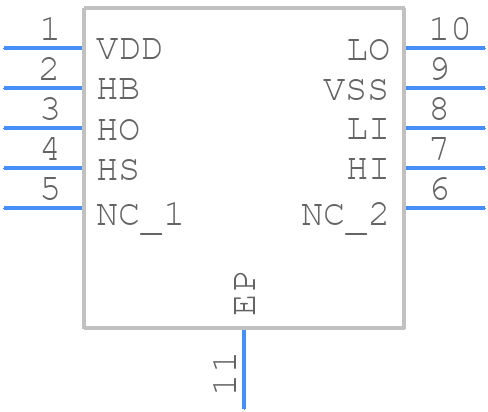

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC27201AQDMKRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMK0010A
click to zoom
3D Models
UCC27201AQDMKRQ1 - Texas Instruments  - 3D model - Small Outline No-lead - DMK0010A
click to zoom

UCC27201AQDMKRQ1 Details

  • Manufacturer Part Number:

    UCC27201AQDMKRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-04-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    3 A

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    122 V

  • Supply Voltage1-Min:

    -1 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    4 mm

UCC27201AQDMKRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC27201AQDMKRQ1 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense lines to minimize noise and improve accuracy.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set to a value that is within the device's specified range, and the input voltage should be sufficient to support the desired output voltage. It's also important to ensure that the device is properly decoupled and that the output capacitors are of sufficient value and type.
  • The UCC27201AQDMKRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to keep the device within its specified thermal limits. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
  • When troubleshooting issues with the UCC27201AQDMKRQ1, it's essential to follow a systematic approach. Start by verifying the input voltage and current, then check the output voltage and current. Use an oscilloscope to examine the waveforms and look for signs of oscillation or instability. Check the PCB layout and component values to ensure they are correct, and verify that the device is properly decoupled.
  • The UCC27201AQDMKRQ1 is a high-frequency device, and as such, it's essential to take steps to minimize electromagnetic interference (EMI). This can be achieved by using a shielded enclosure, keeping the device and its associated components away from sensitive circuits, and using EMI filters or common-mode chokes to reduce radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC27201AQDMKRQ1 Overview

Use the download button to access the UCC27201AQDMKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
