UCC27211DRMR - Texas Instruments

Description: Driver 4.5A 2-OUT High and Low Side Full Brdg/Half Brdg Non-Inv 8-Pin VSON EP T/R

Download UCC27211DRMR Model

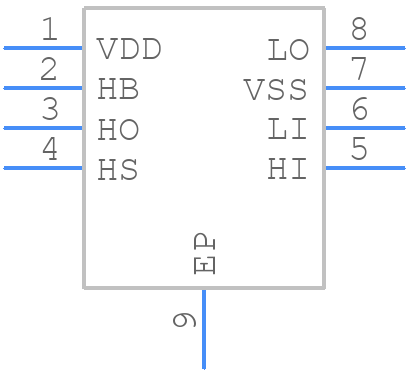

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC27211DRMR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRM (S-PVSON-N8)
click to zoom
3D Models
UCC27211DRMR - Texas Instruments  - 3D model - Small Outline No-lead - DRM (S-PVSON-N8)
click to zoom

UCC27211DRMR Details

  • Manufacturer Part Number:

    UCC27211DRMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.2 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    122 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.6 µs

  • Width:

    4 mm

UCC27211DRMR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC27211DRMR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • When selecting an input capacitor for the UCC27211DRMR, consider the capacitor's voltage rating, capacitance value, ESR, and ripple current rating. A low-ESR capacitor with a voltage rating above the maximum input voltage and a capacitance value of 10-22 μF is recommended. TI provides guidance on input capacitor selection in the datasheet and application notes.
  • The UCC27211DRMR is rated for operation from -40°C to 125°C. As the ambient temperature increases, the device's performance may degrade, and the maximum output current may decrease. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The UCC27211DRMR has a built-in OCP and SCP feature. To implement OCP, set the OCSET pin to the desired current limit. For SCP, use the SCP pin to detect short-circuit conditions and shut down the device. Refer to the datasheet and application notes for detailed implementation guidelines.
  • When selecting an output inductor for the UCC27211DRMR, consider the inductor's saturation current, DC resistance, and core material. A suitable inductor should have a high saturation current, low DC resistance, and a core material with low core loss. The output inductor affects the converter's efficiency, output voltage ripple, and stability.
