A good PCB layout for the UCC27212DPRT involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
Proper thermal management involves providing a good thermal path from the device to a heat sink or the PCB, using thermal vias, and ensuring good airflow. The UCC27212DPRT has an exposed thermal pad that should be connected to a heat sink or a thermal plane on the PCB.
When selecting input and output capacitors, consider the voltage rating, capacitance value, ESR, and ripple current rating. The capacitors should be able to handle the maximum input voltage, output voltage, and ripple current. TI provides guidelines for capacitor selection in the datasheet and application notes.
To troubleshoot issues with the UCC27212DPRT, start by verifying the PCB layout, component selection, and soldering quality. Use an oscilloscope to measure the switching waveforms and check for signs of oscillation or instability. Consult the datasheet, application notes, and TI's support resources for guidance.
The UCC27212DPRT and UCC27211 are both high-voltage, high-current synchronous buck converters, but they have different feature sets and pinouts. The UCC27212DPRT has a higher switching frequency and a more advanced voltage regulator module, while the UCC27211 has a simpler voltage regulator module and a lower switching frequency. Consult the datasheets and application notes for a detailed comparison.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27212DPRT Overview

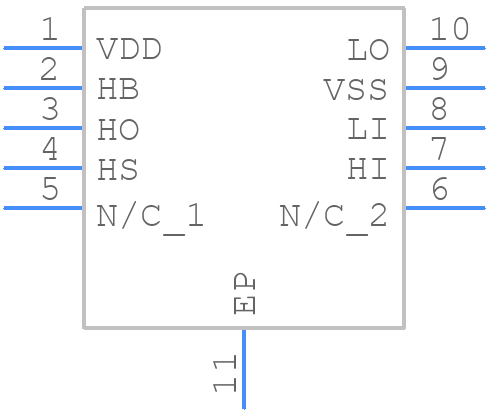

Use the download button to access the UCC27212DPRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
