Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. Texas Instruments provides guidelines and recommendations for component selection in the datasheet and application notes, such as SLUA645 and SLUA646.
The maximum junction temperature (Tj) for the UCC27282QDRCTQ1 is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and minimize thermal stress.
Texas Instruments provides troubleshooting guidelines and techniques in the application notes and technical articles, such as SLUA645 and SLUA646. Additionally, engineers can use simulation tools, such as TI's WEBENCH Power Designer, to simulate and analyze the circuit behavior and identify potential issues.
Yes, the UCC27282QDRCTQ1 is compatible with lead-free soldering processes, as it is a RoHS-compliant device. However, it's recommended to follow the recommended soldering profile and guidelines provided by Texas Instruments to ensure reliable assembly and operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27282QDRCTQ1 Overview

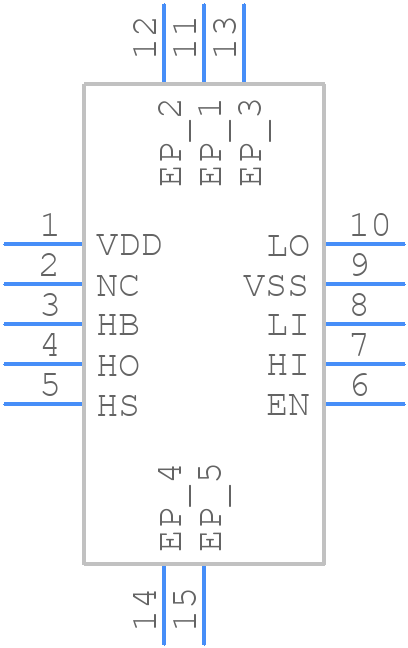

Use the download button to access the UCC27282QDRCTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
