UCC27423DR - Texas Instruments

Description: Dual 4-A MOSFET Driver with Enable

Download UCC27423DR Model

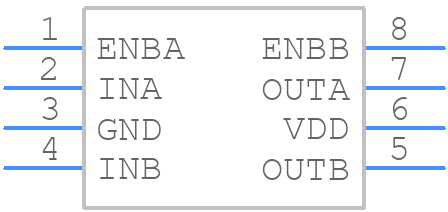

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC27423DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A SOIC - 1.75 mm max height
click to zoom
3D Models
UCC27423DR - Texas Instruments  - 3D model - Small Outline Packages - D0008A SOIC - 1.75 mm max height
click to zoom

UCC27423DR Details

  • Manufacturer Part Number:

    UCC27423DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.35 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

UCC27423DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC27423DR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended PCB layout in the application note SLUA623.
  • To ensure the UCC27423DR operates within its SOA, monitor the device's junction temperature (TJ), input voltage (VIN), and output current (IOUT). Use thermal design and layout techniques to keep TJ below 150°C. Also, ensure VIN is within the recommended range (4.5V to 18V) and IOUT does not exceed the maximum rating (3A).
  • When selecting L and COUT, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. A good starting point is to choose an inductor with a high saturation current rating and a capacitor with a low ESR. TI provides a detailed design guide in the application note SLUA622.
  • The UCC27423DR has a built-in OCP feature that can be enabled by connecting the OCP pin to VIN. For SCP, use an external resistor (RSCP) to detect short-circuit conditions. TI provides a detailed implementation guide in the application note SLUA621.
  • The main differences between the UCC27423DR and UCC27323DR are the maximum output current rating (3A vs. 2A) and the package type (SOIC-8 vs. QFN-16). The UCC27423DR has a higher output current rating and is available in a smaller package, making it suitable for more compact designs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC27423DR Overview

Use the download button to access the UCC27423DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
