Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 1-10 μF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the input current and frequency.
The maximum junction temperature (Tj) for the UCC27423QDRQ1 is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal performance and reliability. Exceeding the maximum junction temperature can lead to reduced lifespan or even device failure.
Yes, the UCC27423QDRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the UCC27423QDRQ1, start by verifying the PCB layout and component selection. Check for proper decoupling, input filtering, and output filtering. Use an oscilloscope to measure the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27423QDRQ1 Overview

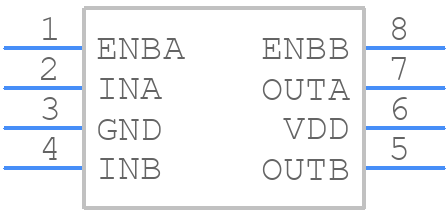

Use the download button to access the UCC27423QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
